Variátory

Charakteristic

With great reliability developed over 45 years of service, the VAR series motovariator is a valid alternative to electronic drives  and is easy to use and maintain.

The S type in cast iron includes a wide range of models with flange, feet, or in compact version and is available in seven sizes from 003 to 100, with input shaft or in motorized version. The SD version with differential can also be used in applications with speeds close to 0.

The low-cost, light weight TXF versions in aluminium are available in sizes 002, 005 and 010.

Certifications Available: ATEX 2GD/3GD

Warranty: Two years from date of delivery.

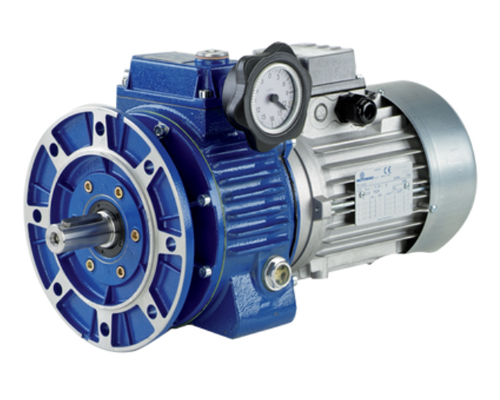

Motovariators S

• Sizes: 003-005-010-020-030-050-100
• Power up to 9,2 kW
• Cases in G200 grey cast iron
• Shafts: case hardened and tempered 20MnCr5 steel (UNI8550)
• Internal components: 100Cr6 heat-treated steel
• Output speed with 4 pole motors: 190 ÷ 1000, or 0 ÷ 1000 with differenzial
• Output speed with 2 pole motors: 380 ÷ 2000, or 0 ÷ 2000 with differenzial
• Output speed with 6 pole motors: 122 ÷ 660, or 0 ÷ 660 with differenzial
• Torque value max 144 Nm
• Silent, vibration-free running
• High efficiency
• Bidirectional rotation
• Control handwhel positionable on either side
• Slipping speed to max load at 5%
• Regulation sensibility: 0,5 rpm
• Painted with RAL 5010 blue epoxy-polyester powder

Motovariators TXF

• Sizes: 002-005-010
• Power up to 2,2 kW
• Cases in die-cast aluminium alloy
• Shafts: case hardened and tempered 20MnCr5 steel (UNI8550)
• Internal components: 100Cr6 heat-treated steel
• Output speed with 4 pole motors: 170 ÷ 1000
• Output speed with 2 pole motors: 340 ÷ 2000
• Output speed with 6 pole motors: 109 ÷ 643
• Torque value max 12 Nm
• Silent, vibration-free running
• High efficiency
• Bidirectional rotation
• Control handwhel positionable on either side
• Slipping speed to max load at 5%
• Regulation sensibility: 0,5 rpm
• Painted with RAL 5010 blue epoxy-polyester powder

Charakteristic

With great reliability developed over 45 years of service, the VAR series motovariator-gear reducer is a viable alternative to electronic drives and is easy to use and maintain.

The VH version in cast iron with compact design is available with variators from size 003 to 100 combined with helical gearmotors in cast iron from size 030 to 125.

The VHA version in aluminum with compact design is available with variators from size 002 to 010 combined with helical gearmotors in cast iron from size A30 to A60.

Certifications Available: ATEX 2GD/3GD

Warranty: Two years from date of delivery.

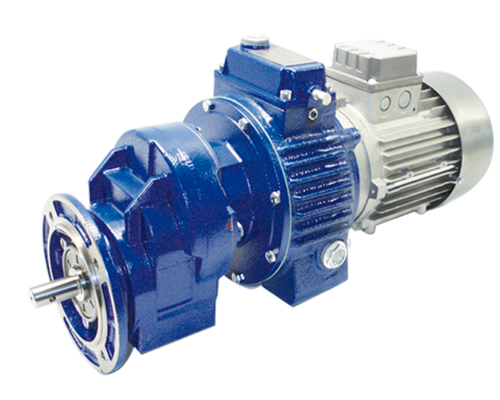

Motovariators VH

• Compact version
• Variator sizes: 003-005-010-020-030-050-100 combined with helical gear reducer: 030-040-050-060-080-100-125
• Power up to 9,2 kW
• Cases in G200 grey cast iron for high strength and optimized with FEM analysis
• Torque value max 5.000 Nm
• Painted with RAL 5010 blue epoxy-polyester powder

Motovariators VHA

• Compact version
• Variator sizes: 002-005-010 combined with helical gear reducer: A30-A40-A50-A60
• Power up to 2,2 kW
• Cases in die-cast aluminium alloy
• Torque value max 480 Nm
• Painted with RAL 5010 blue epoxy-polyester powder

Charakteristic

With great reliability developed over 45 years of service, the VAR series motovariator-gear reducer is a viable alternative to electronic drives and is easy to use and maintain.

They are available with variators in cast iron from size 003 to 100 combined with NMRV worm gear reducers from size 030 to 150, in aluminium in sizes 002, 005 and 010 combined with NMRV worm gear reducers from size 030 to 130.

Warranty: Two years from date of delivery.

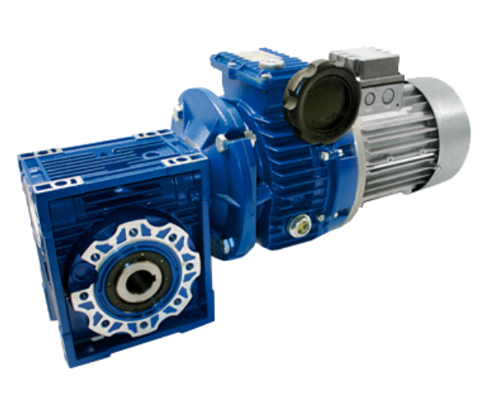

Motovariators S+NMRV

• S combined with worm gear reducer: 030-040-050-063-075-090-105-110-130-150
• Power up to 9,2 kW
• Cases in G200 grey cast iron for high strength and optimized with FEM analysis
• Torque value max 2.670 Nm
• Painted with RAL 5010 blue epoxy-polyester powder

Motovariators TXF+NMRV

• TXF combined with worm gear reducer: 030-040-050-063-075-090-105-110-130
• Power up to 2,2 kW
• Cases in die-cast aluminium alloy
• Torque value max 1.100 Nm
• Painted with RAL 5010 blue epoxy-polyester powder
